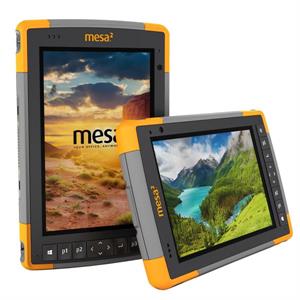

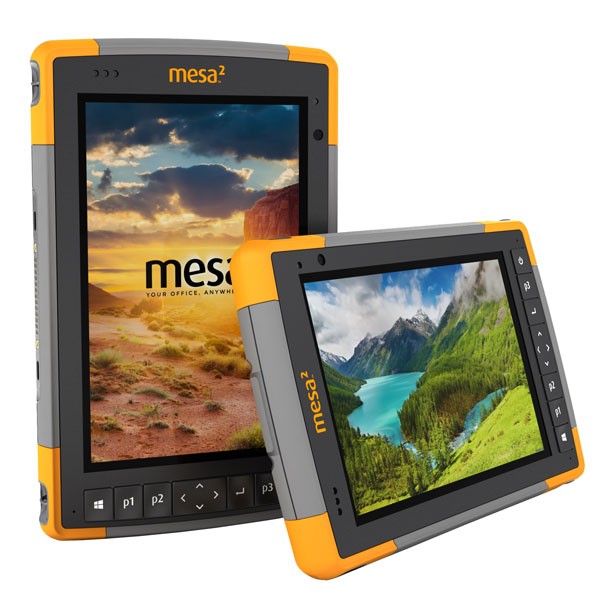

Mesa 2 Geo(Android)


Price: $2,755.99
Item Number: 1799

Available in a sleek package with the highest-rated protection against water and dust, the Mesa 2 Rugged Tablet can go with you into the harshest of environments. Running Windows 10 or Android, the new Mesa 2 Rugged Tablet brings powerful functionality to your mobile data collection, featuring a large, 7-inch, extra-bright display for easilyviewing maps or images, all-day battery power lasting up to 15 hours, and of course, the unmatched ruggedness that Juniper Systems is known for.

POWERFUL WINDOWS AND ANDROID OS

Running on both Windows 10 and Android operating systems, the Mesa 2 provides options for whatever solution you’re searching for. Android is available for users seeking the mobile versatility of this operation system, while running Windows 10 provides users with powerful functionality in the field—making the use of a desktop computer simply… optional.



Having a full Windows operating system also means you’ve got a wide range of data collection software and apps to choose from, making it easy to find a solution that fits each individual need perfectly.

Physical

  • Size: 5.4" w x 8.48" l x 1.36" d (137 mm x 215 mm x 35 mm)
  • Weight: 1.5-2 lbs (680-907 g)
  • Durable, chemical- and shock-resistant design
  • Easy-to-grip, impact-absorbing, overmolded bumpers
  • Lightweight and ergonomic design

Battery

  • Removable Li-Ion battery, 39 Whr
  • Operates 8–10 hours on one charge
  • Battery easily changeable in field
  • Optimized for strong performance in cold temperatures
  • Excellent lifecycle performance
  • Optional built-in 19-Whr battery provides additional 4–5 hours runtime and hot-swap capability

Display

  • Active viewing area: 7" (178 mm)
  • Resolution: WXGA (1280 x 800)
  • High-visibility backlit LCD for best-in-class sunlight view-ability
  • Portrait or landscape orientation with automatic screen rotation

Touchscreen

  • Projected capacitive multi-touch interface for use with gloves, small tip stylus, and in wet conditions
  • Optically bonded for increased visibility and strength
  • Chemically-strengthened Dragontrail™ High Ion-Exchange (HIE™) coverglass for excellent impact and scratch resistance

Juniper RuggedTM

  • IP68 waterproof and dustproof
  • Operating Temperature: -4 F to 122 F (-20 C to 50 C)
  • Storage temperature: -22 F to 158 F (-30 C to 70 C)
  • Shockproof: multiple drops from 4' (1.2–1.5 m) onto concrete
  • Designed for MIL-STD-810G test procedures: Method 500.5 Low Pressure (Altitude); Method 501.5 High Temperature; Method 502.5 Low Temperature; Method 503.5 Temperature Shock; Method 506.5 Rain; Method 507.5 Humidity; Method 510.5 S and Dust; Method 512.5 Immersion; Method 514.6 Vibration; Method 516.6 Shock

OS & Software

  • Microsoft® Windows 10 Pro 64-bit or Android 5.1 (AOSP)
  • Multiple languages supported (English, French, Spanish, German, Portuguese)

Wireless Connectivity Options

  • Long-range Bluetooth® Smart Ready wireless technology, v4.0 +EDR, Class 1.5, BLE support
  • Wi-Fi 802.11 a/b/g/n, 2.4 GHz and 5 GHz
  • 4G LTE, GSM, Verizon (Windows 10 only)

Camera (Geo Models)

  • Rear: 8 MP with LED illumination
  • Front: 2 MP
  • Juniper Geotagging™: embed photo with date, time, and GNSS position

GPS/GNSS (Geo Models)

  • 2 to 5 meter typical accuracy
  • uBlox NEO-M8N GNSS receiver and integrated antenna
  • Integrated real-time SBAS receiver (WAAS, EGNOS, etc.)
  • 72 GNSS tracking channels
  • Optional: uBlox NEO-M8T w/post-processing data output and external GNSS antenna pass-through connection for sub-meter accuracy

Certifications & Standards

  • FCC Class B
  • CE Marking (applicable EMC, R&TTE, and LVD directives)
  • Industry Canada
  • EN60950 Safety
  • RoHS 2 Compliant
  • Optional Class 1, Div II (C1D2) Non-incendive
  • Verizon


Mesa 2 Android not compatible with LeakDas Mobile 8+. Contact Inspection Logic for more info.
